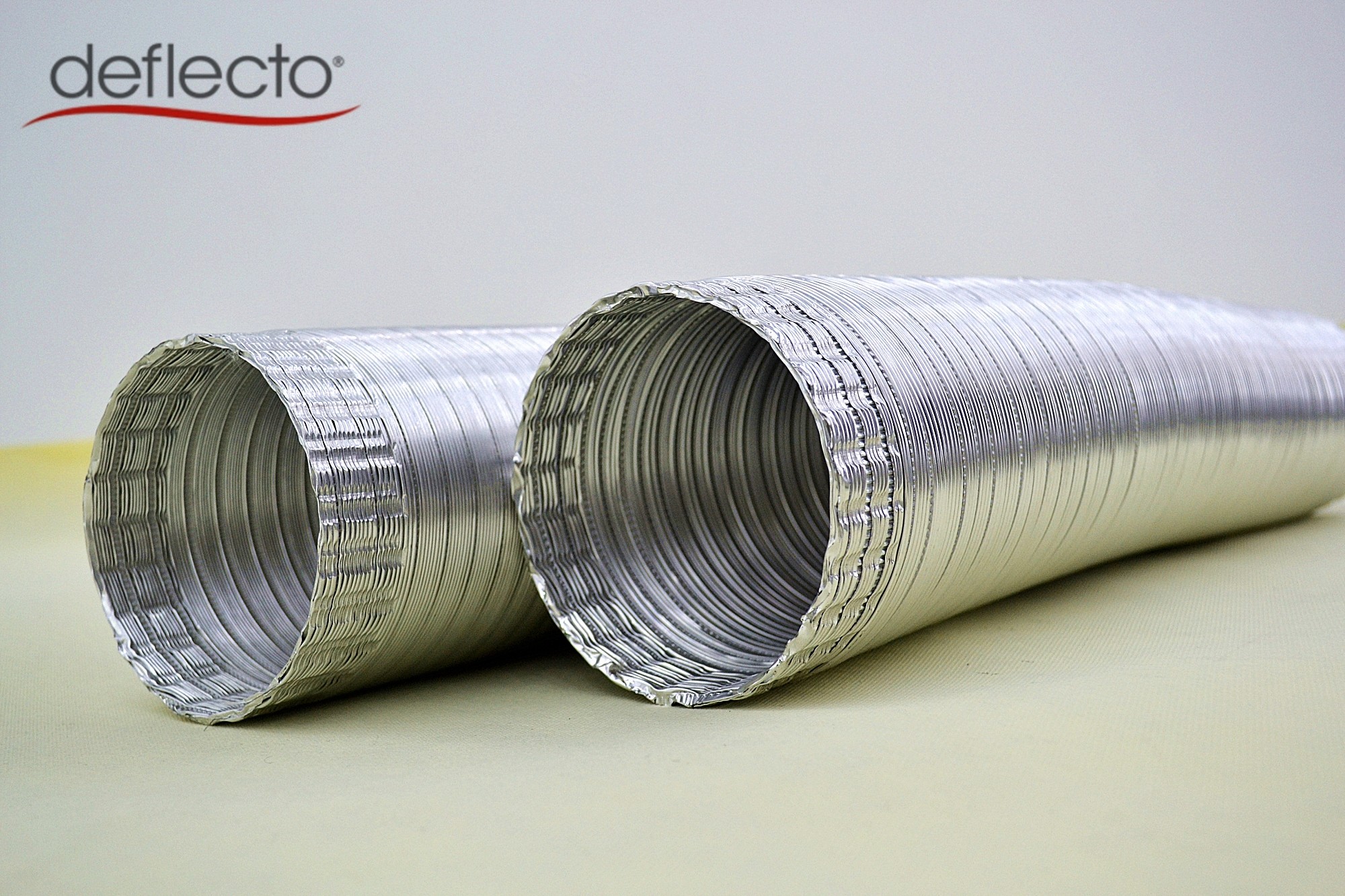

Semi Rigid Aluminum Air Conditioner Vent Hose Crimped Ended HVAC System Parts
Semi Rigid Flexible Duct Specification
1.Material | 100% Aluminum | |
2.Diameter | From 80 MM to 350MM | |
3.Length | From 2 Meters to 6 Meters | |
4.Thickness | From 0.08MM to 0.2MM | |
5.Temperature Rating | -70o C ~ 250o C | |
1.For multiple use - Dryer, Bathroom, Rangehoods and other general venting applications.
2.Durable, 30% thicker material is used in manufacturing to offer greater strength and temperature rating.
3.To gain maximum length, use both hands to work in sections from the centre-out to either end.
4.Crimped,Non-Crimped and Models with Connectors Available
Product Feature:
| Aluminum Semi Rigid Flexible With Crimped Ended |
Porformance Data :
For uninsulated aluminum flexible duct
Maximum Velocity
• 5000 FP M
Maximum Rated Pressures
• 3" - 8" dia., 6" w.g. Pos/Neg
Operating Temperature Range
• -100°F to 430°F
Class O Air Duct, Flexible
Flame Spread/Smoke Developed
• 0/0
